• Install docker and compose for your operating system: https://docs.docker.com/install/



• Create the following folder structure on your system:





  Download the manager configuration file from github: manager/application.properties
  Download the server configuration file from github: server/application.properties

• Setup environment and variables needed by docker-compose:

  1. DB_USER: the h2 database user
  2. DB_PASSWORD: the h2 database password
  3. DATA_LOCATION: volume where the database file will be stored by docker compose on the host
  4. SPRING_CONFIG_LOCATION_MANAGER: folder containing spring boot 'application.properties' mandatory for starting the soagg-manager
  5. SPRING_CONFIG_LOCATION_SRV: folder containing spring boot 'application.properties' mandatory for starting the backend server




  export DB_USER=sa
  export DB_PASSWORD=
  export DATA_LOCATION=./data
  export SPRING_CONFIG_LOCATION_MANAGER=./manager
  export SPRING_CONFIG_LOCATION_SRV=./server





• Paste following content into file 'compose-dev.yaml':


  version: '3.7'
  services:

    soagg-database:
      image: jsoagger/soagg-h2:1.4.197-1.0.0-nd
      restart: on-failure
      ports:
        - 1521:1521
        - 81:81

      volumes:
         - $DATA_LOCATION:/opt/h2-data

      environment:
        - DB_USER=$DB_USER
        - DB_PASSWORD=$DB_PASSWORD

      networks:
        - soagg_network


    soagg-foundation-srv:
      image: jsoagger/soagg-foundation-srv:latest
      restart: on-failure
      ports:
        - 8080:8080

      volumes:
        - $SPRING_CONFIG_LOCATION_SRV:/spring-config/:ro

      depends_on:
        - soagg-database

      networks:
        - soagg_network


    soagg-manager:
      image: jsoagger/soagg-manager:latest
      container_name: soagg-manager_1
      tty: true
      stdin_open: true
      environment:
        - MANAGED_BACKEND_REST_URL=http://soagg-foundation-srv:8080/jsoagger

      volumes:
        - $SPRING_CONFIG_LOCATION_MANAGER:/spring-config/:ro

      depends_on:
        - soagg-foundation-srv

      networks:
        - soagg_network


    soagg-webdev:
      image: jsoagger/soagg-webdev:latest
      container_name: soagg-webdev
      ports:
        - '3000:3000'

      environment:
        - NODE_ENV=development
        - CHOKIDAR_USEPOLLING=true
        - JSOAGGER_API_URL=http://localhost:8080/jsoagger

      networks:
        - soagg_network

  networks:
    soagg_network:
      driver: "bridge"




• Start all services with docker compose:



  > docker-compose -f compose-dev.yaml up




• Load foundation datas:




  docker run --rm --name soagg-foundation-data --network=docker-compose_soagg_network \
  -v $SPRING_CONFIG_LOCATION_MANAGER:/spring-config/\
  jsoagger/soagg-foundation-data:latest

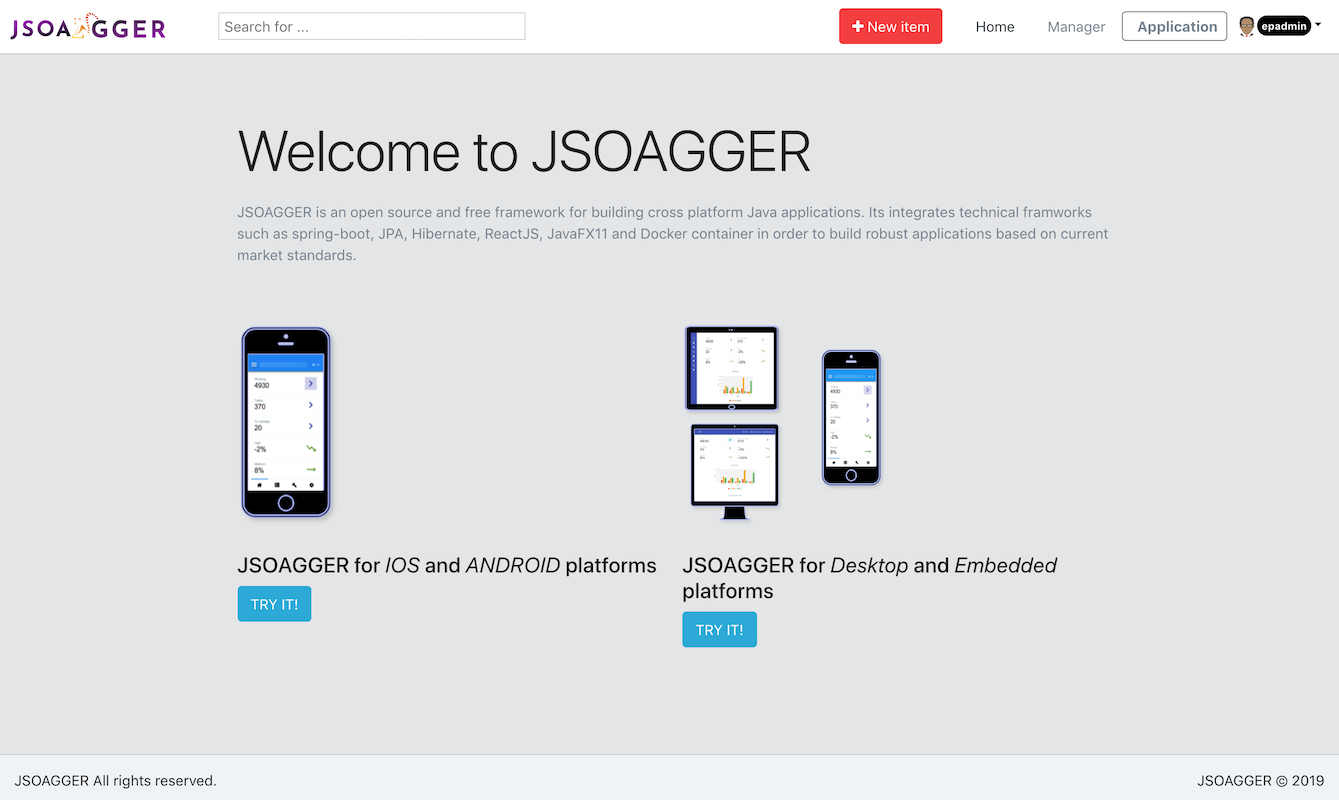

• Browse:

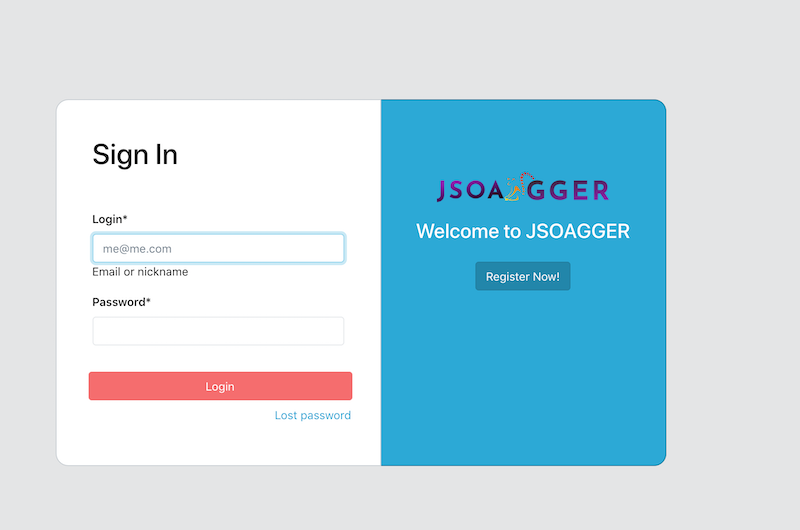

  http://localhost:3000/#/c/login
  http://localhost:81/

Docker Hub is the world's largest library and community for container images.
All JSoagger official images are published under docker hub automatically from travic-CI.
You can browse all of them from following url : https://hub.docker.com/u/jsoagger

'soagg-h2' is a customized h2 database server for jsoagger. It includes initialization script for database schema initialization.

'soagg-foundation-srv' is the jsoagger backend server. Based on springboot, it starts an embedded tomcat server on port 8080.

'soagg-manager' is the command line interface for managing jsoagger backend server. Built ith spring shell 2.0, it includes more than 60 commands.

'soagg-webdev' is the React.js web ui client on jsoagger.
